Nistelle™ 718 Alloy

Nominal Composition (Mass %) and Physical Properties

Ni Cr Fe Mo Nb+Ta C Others Hardness Density Melting Range
Base 19 19 3 5 0.05 Ti, Al
34-44 HRC* 8.22 g/cm3
0.297 lb/in3
1204-1343ºC
2200-2450ºF

*Hardness depends on heat treat condition.

Nistelle 718

Nistelle nickel-based alloys are designed primarily for high corrosion resistance. They have excellent high-temperature strength, resistance to oxidizing and/or reducing acids (depending on the grade) and are readily machinable.

Nistelle 718 is a nickel-chromium-iron vacuum alloy that is typically used for structural parts requiring strength up to 1300°F (704°C) and oxidation resistance up to 1800°F (982°C). This age-hardenable alloy can be readily cast and fabricated into complex parts and its welding characteristics, especially its resistance to postweld cracking, are outstanding. The ease and economy with which Nistelle 718 can be fabricated — combined with excellent tensile, fatigue and creep and rupture strength — have resulted in its use in a wide range of applications.

Nistelle 718 was initially developed for the aerospace industry and is still considered the material of choice for many aircraft engine components. Its excellent strength and corrosion resistance have been recognized by the oil industry and it is now widely used in this field.



Nistelle 718 Vacuum Casting 500X
SPECIFICATION PRODUCT FORM
UNS N07718 Powder, Casting
AMS 5383 Casting (Vacuum)

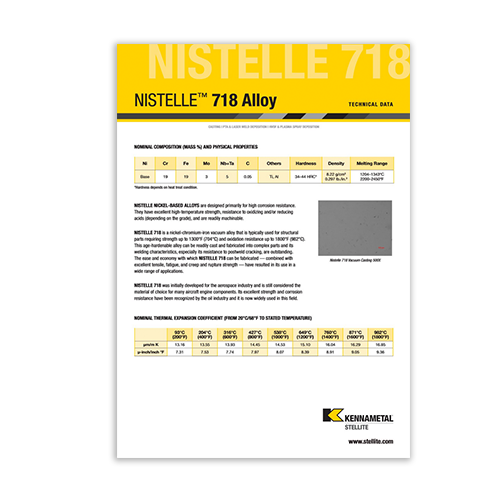

Nistelle 718 Alloy Data Sheet

Check out our Nistelle 718 Alloy data sheet for additional information.

View Now
