Nistelle™ C-22 Alloy

Nominal Composition (Mass %) and Physical Properties

NiCrMoCWFeOthersHardnessDensityMelting Range
Base22130.0133Co, Mn, Cu, V83-98 HRB8.69 g/cm3
0.314 lb/in3

Nistelle C-22

Nistelle nickel-based alloys are designed primarily for high corrosion resistance. They have excellent high-temperature strength, resistance to oxidizing and/or reducing acids (depending on the grade) and are readily machinable.

Nistelle C-22 is a nickel-chromium-molybdenum-tungsten alloy with the versatility to be used in corrosive environments where both oxidizing and reducing chemicals are present. It was the first low C and Si Ni-Cr-Mo series alloy with higher Cr content. The high chromium content provides good resistance to oxidizing media while the molybdenum and tungsten content gives good resistance to reducing media. It also excels at protecting against pitting, crevice attack and stress-corrosion cracking. The exceptional resistance of Nistelle C-22 to a broad range of corrosive environments, including mixed chemicals, makes it a strong candidate for use in industrial situations where “upset” conditions are likely to occur.

Nistelle C-22 has been used in a variety of corrosive environments in the pulp and paper, petrochemical, chemical, and power generation industries, and in marine service. Nistelle C-22 has been applied to a wide variety of parts, including boiler tube walls, large-diameter shafts and pulp and paper digesters.


HVOF Nistelle C-22
UNS N06022Powders
ASTM A494 CX2MWCasting
UNS N26022Casting

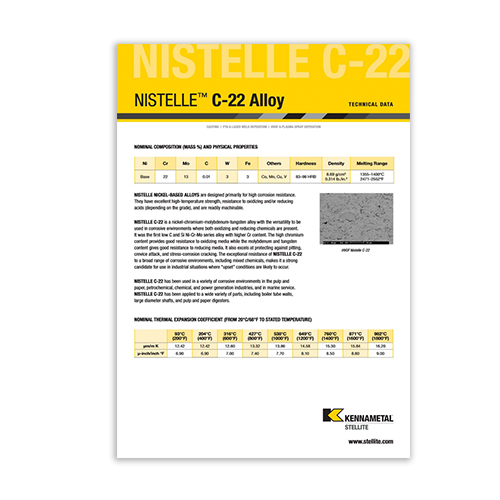

Nistelle C-22 Alloy Data Sheet

Check out our Nistelle C-22 Alloy data sheet for additional information.

View Now
