Our products are used in multiple steps of the lumber milling process for both circular and band saw applications. From logs to lumber, Kennametal has you covered with Stellite and carbide products to withstand demanding environments.
Kennametal offers a variety of treatments, custom grinding & custom grades:
Treatments
Custom Grinding
Custom Grades
Forestry Experience: Kennametal Stellite uses a collaborative approach to deliver an extensive saw-tipping portfolio that best fits our partners’ needs. Our knowledge and understanding of the timber industry leads to continually enhanced products and improved service. Our partnerships with lumber mills, distributors, and equipment manufacturers facilitate ease of business, product availability and breadth of portfolio.
Quality: Our tungsten carbide and Stellite materials are produced to the highest quality standards, ensuring saw sharpness and tip strength are never compromised. Our dedication to quality means reliable performance, longer run times and no surprises.
Consistency: Kennametal Stellite offers a wide selection of sawmilling solutions to provide its users with consistent results even in the most inconsistent environments and with the toughest species of wood.
| Applications | |||||||
| Stellite Alloy | Hardness (HRC) | Primary / Trim | Edger | High Impact | |||
| KST12PM | Stellite 12 is a weldable alloy composed of cobalt, chrome, and tungsten with high toughness and excellent corrosion resistance, and appropriate for use in circular and band saws when cutting green, frozen, and kiln-dried lumber. | 48 | • | • | • | ||

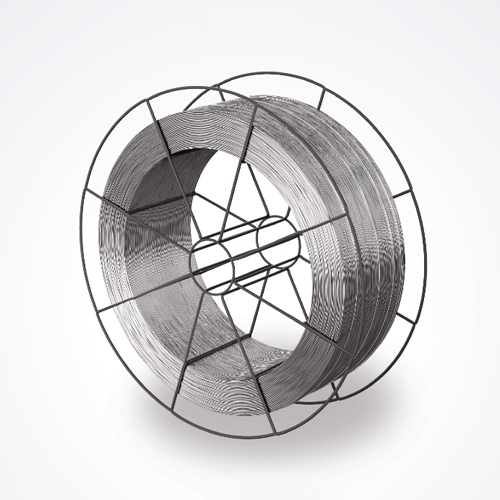

| KST1PM | Stellite 1 has. a higher proportion of primary carbides dispersed in the alloy and is, therefore, harder than Stellite 12. Stellite 1 is appropriate for use when cutting harder species and is available in spooled wire form. | 58 | • | • | • | ||
| Cemented Tungsten Carbide | Hardness | Applications | |||||
| Grade Name | Average WC Grain Size (μm) | Industry Classification | Cobalt Binder (wt%) | HRA | Primary / Trim | Edger | High Impact |
| KFF05 | Fine | C2 K20 | 5.5% | 92.1 | • | ||
| KFS64 | Submicron | C1/C2 K30 | 10% | 91.8 | • | • | |
| KWH | Medium | C1/C2 K30 | 8.6% | 90.3 | • | • | |
| KFM65 | Medium | C1 K40 | 11.5% | 89.8 | • | ||
| K3030C | Coarse | C11 K30 | 11.4% | 88.5 | • | ||
| KW115 | Medium | C13 K40 | 15% | 87.6 | • | • | |
