Stellite™ 4 Alloy

Nominal Composition (Mass %) and Physical Properties

Co Cr W C Others Hardness Density Melting Range
Base 30 14 1 Mn, Fe, Si, Ni 45-49 HRC 8.61 g/cm3
0.311 lb/in3
1340-1395ºC
2245-2545ºF

Stellite 4

Stellite cobalt-based alloys consist of complex carbides in an alloy matrix. They are resistant to wear, galling, and corrosion and retain these properties at high temperatures. Their exceptional wear resistance is due mainly to the unique inherent characteristics of the hard carbide phase dispersed in a CoCr alloy matrix.

Stellite 4 is a cobalt-based alloy having greater wear resistance than Stellite 6 and is used for applications subject to only moderate mechanical shock. It is a machinable casting alloy having extremely good high-temperature strength due to the higher tungsten and carbon contents. It has very good galling resistance at room and elevated temperatures. It exhibits a very low coefficient of friction when rubbed against itself and hard steels.

Stellite 4 is often used for dies, hot pressing, and hot extrusion of copper base and aluminum alloys. It has also been used with success in pumps in corrosive and erosive conditions. Stellite 4 is also used for bushings and sleeves for Zn-Al hot dipping process.



Stellite 4 Microstrucute at 600X
DESIGNATION PRODUCT FORM
UNS R30404 Castings and Powder

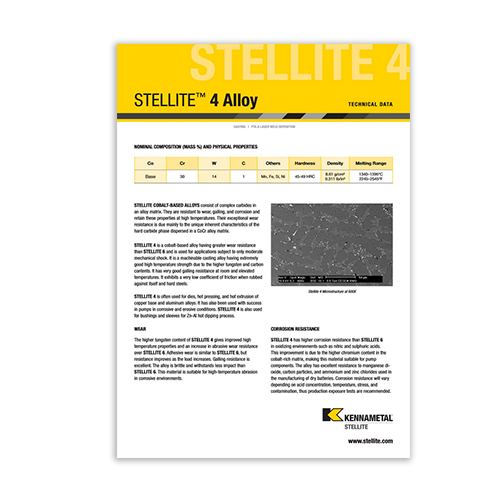

Stellite 4 Alloy Data Sheet

Check out our Stellite 4 Alloy data sheet for additional information.

View Now
